Bobkart & Lifterkart
M.B.R. Manufacturing burial vault equipment for 30 Years 1994 - 2024

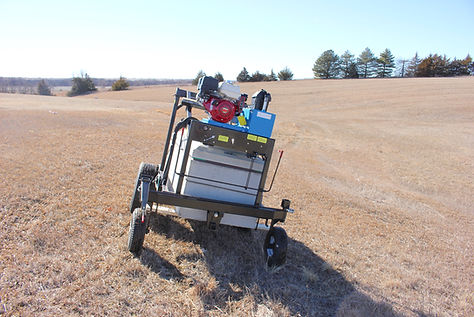

Bobkart Model G
'G' Model Features include:
1. Smart design, by people who are experienced in using them.
2. Large Dayton Gearbox.
3. Strong, 5 inch side, MIG-welded frame.
4. Extension shaft to take the chain tension off the gearbox.
5. One year warranty for parts only, based on normal use.
6. Easy access to chains, sprockets and electrical components.
7. Removable spring-loaded cover releases the removable deck.
8. Optional custom gear ratios for either: more torque or
more speed.
9. Lift rollers can be set to free-wheel or drag, in up position.
10. 1 1/4 inch roller shafts.
11. #60 Chain is standard.
12. Industry standard components.
13. Voltmeter, and Extra Heavy Duty 200 amp Solenoid.
14. Crane pendant on 10 foot coiled cord.
15. 7 x 30 rollers for high floatation across grass - 3 yr warrantee.
16. All wiring is bolted or soldered, not just crimped.
17. Quiet Electric operation. No hydraulic fluid to leak or stain markers.
18. Narrow for tight places, just the vault plus 9 inches.
19. NO GAS ENGINE: means: no oil changes, no gas, less noise,
no hard starting, no air filter to clean, no starter to break,
no exhaust to choke on.
20. Will carry 3000# up or down a 30 degree incline.
Retro kit includes: 1 HP Motor and Modified Motor Mount with Clamp, Dayton Gearbox, Disc Brake with Rods, Spacers, and Disc, Jack Shaft with Coupling and #60 Double Sprocket, Keys and Roll Pins, and Channel Mounting Plate with Carrier Bearing.
Kit is NOT assembled. Call for price: 402-768-7251
We don't assemble this because it is best to weld the mounting plate in place first, then paint it, then assemble the parts on to it.
Vault kart repair and Troubleshooting Section:
We stock a variety of parts that fit most Burial Vault Karts or Burial Vault Dollies, such as Hilljoy and Lawnbug. Sorry, we do not have motor parts such as brushes.
Lifterkart
Turntable for Burial Vaults
This special design Burial Vault turn table has stainless steel ball bearings contained in UHMW to make rotating loads up to 3000 pounds with minor effort. Designed to not rust and to be maintenance-free for years to come.
